Water Well Drilling Rig For Sale 150M

  • Water Well Drilling Rig For Sale 150M
  • Water Well Drilling Rig For Sale 150M
  • Water Well Drilling Rig For Sale 150M

Water Well Drilling Rig For Sale 150M

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 7-15 Days
    Packaging: Standard package for export
    Productivity: 20 SETS PER MONTH
    Brand: HengWang
    Transportation: Ocean
    Place of Origin: Shandong China
    Supply Ability: 20 SETS PER MONTH
    Certificate: ISO,CE
    Port: Qingdao Port,Tianjin Port,Shanghai Port

Basic Info

Model No.: HQY150

Product Description

100m Full Hydraulic Water Well Drilling

Full hydraulic drilling rig is an efficient multi-functional drilling equipment, which is mainly applied in drilling wells, irrigation wells, ground source heating pump wells and boreholes for other purposes, especially for mountain and rock formation well projects. The rig can be drill in different layers, and the maximum hole diameter is up to 300mm.


Main feature

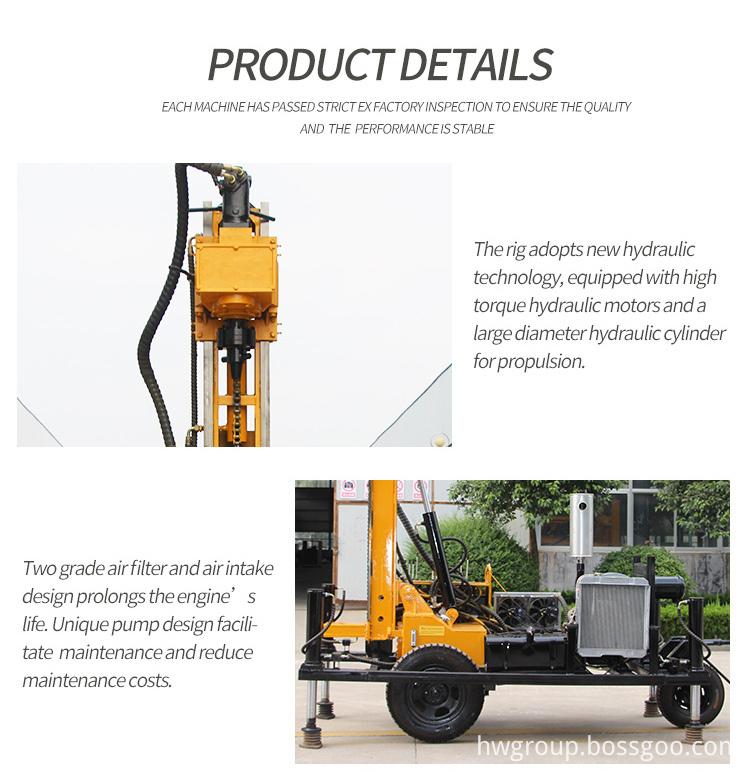

I. The rig adopts new hydraulic technology, equipped with high torque hydraulic motors and a large-diameter hydraulic cylinder for propulsion.

2.Two grade air filter and air intake design prolongs the engines life. Unique pump design facilitate maintenance and reduce maintenance costs.

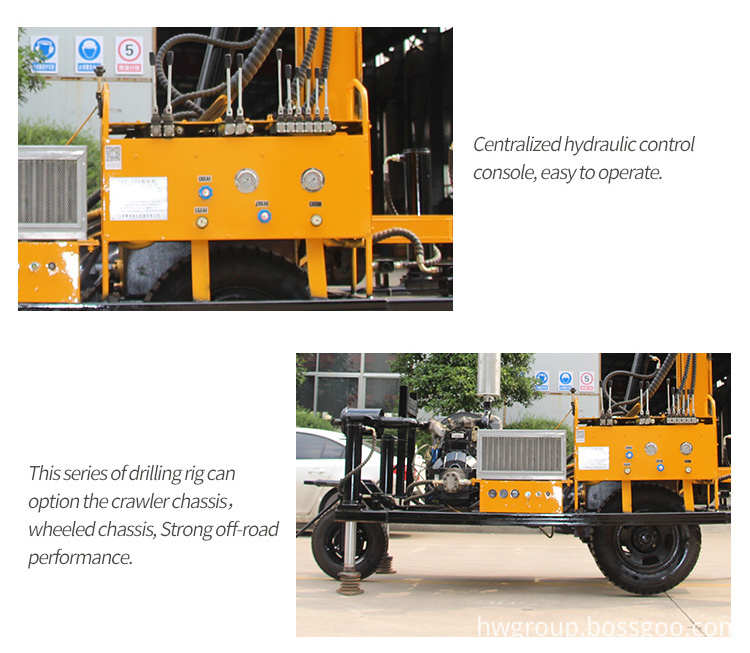

3.Centralized hydraulic control console, easy to operate.

4.This series of drilling rig can option the crawler chassis, wheeled chassis, off-road performance.

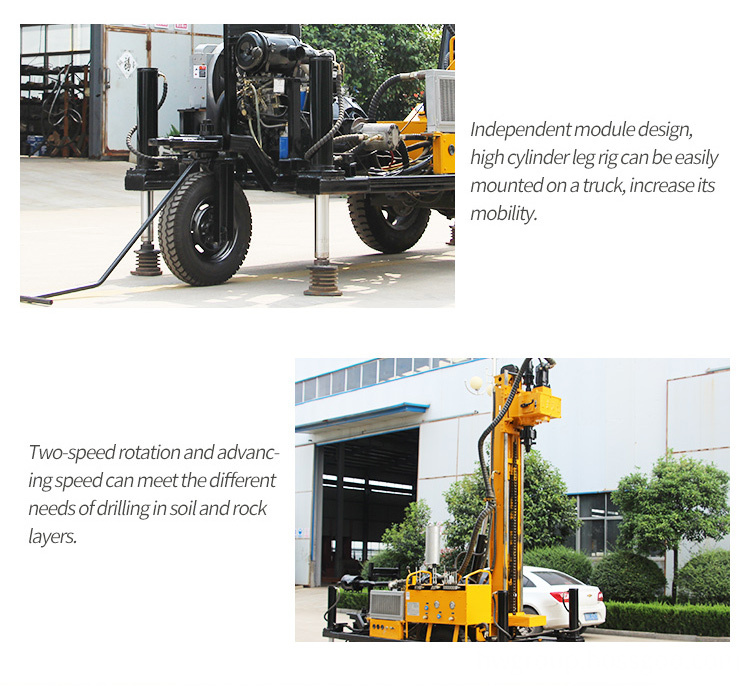

5.Independent module design, high cylinder leg rig can be easily mounted on a truck, increase its mobility.

6.Two rotation speed and advancing speed can meet the different needs of drilling in soil and rock layers.




Product Parameters:

HQY-100 HQY-200 Full Hydraulic Water Well Drilling Rig
Model HQY-100 HQY-200
Weight (Kg) 1800 6000

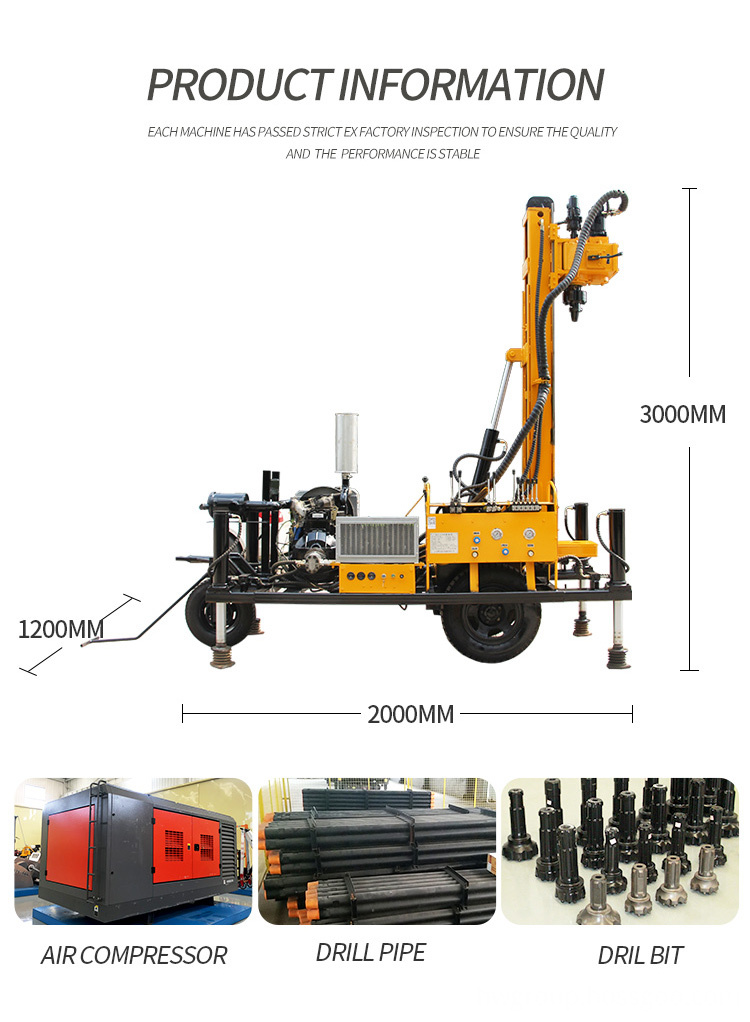

Dimension (mm) 3000*1200*2000 5300*2100*2500
Walking Speed (km/h) 0~2 0~2
Engine Model YN27 4102GBZ
Engine Parameter (KW/rpm) 37/2400 76/2400
Distance from Ground (mm) 250 250
DTH Hammer DHD360 DHD360
Climbing Angle (°) 20 20
Drilling Depth (m) 120 200
Air Pressure (MPa) 1.05~2.46 1.05~2.46
Air Consumption (m^3/min) 16~30 16~30
Drill Pipe Diameter (mm) φ76/φ89/φ102,076/089/0102 φ76/φ89/φ102
Drill Pipe Length (mm) 1500 3000
Drill Pipe Diameter (mm) φ115~φ254 φ115~φ254
Feeding Force (KN) 27 35
Lifting Force (KN) 40 75
Rotary Speed (rpm) Slow Speed 22 22
Fast Speed 177 17
Torque (N.m) 3500 5500

Packing&Shipping:

shipping





certificate

work shop


visit


exhibation

FAQ:

1.Are you factory?

A: We are factory and trading company,we are professional manufacturer of solar pile driver ,Highway guardrail pile driver,Hydraulic water well drilling rig,Pneumatic water well drilling rig etc.


2.What brand of the machinery can we supply?
A: HW, Sem, XCMG, ZGYX brand etc.


3.What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.


4.What about the warranty time?
A:12 months after shipment, excluding wearing parts, We offer these parts with lowest price at any time.


5.How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock or it is 15-25 days if the goods are not in stock, it is according to quantity.


6.Our after services:
Our sales team will response for your question within 24 hours. (Holidays Excluded)
Technical support will be available at any time.
Free replacement will provide once the failure confirmed caused by our product quality.


7.Shipping way

By air or by sea as you required.
